CPLUS-VHHI - HDMI to HDMI Enhancer with EDID Management

​This unit is designed to enhance and stabilize high-bandwidth HDMI signals for cleaner transmission while also providing the utility of customized EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). With the use of the optional PC software it is possible to create, edit, upload or download the customized User EDID. The unit’s included hot key and simple LED design allows the user to quickly switch between different configurations while viewing EDID status information.

SPECIFICATIONS:
​HDMI input and output with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 1.4 and 2.2 compliant
Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
Supports 48-bit Deep Color up to 1080p@60Hz and 36-bit Deep Color up to 4k@60Hz (YUV 4:2:0)
Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
EDID selectable between internal, external and user’s custom EDID
PC based EDID management tool support via the Micro-USB port
LED display providing an easy view of the current EDID and unit status

Inputs 1x HDMI [1x Uncompressed AV and Data]
1x USB Mini-B [1x CONTROL / SERVICE Propriety Data]
Outputs 1x HDMI [1x Uncompressed AV and Data]
PSU: 5V/2.6A
Dimensions 50mm [W] x 97mm [D] x 22mm [H]
Net Weight 60g

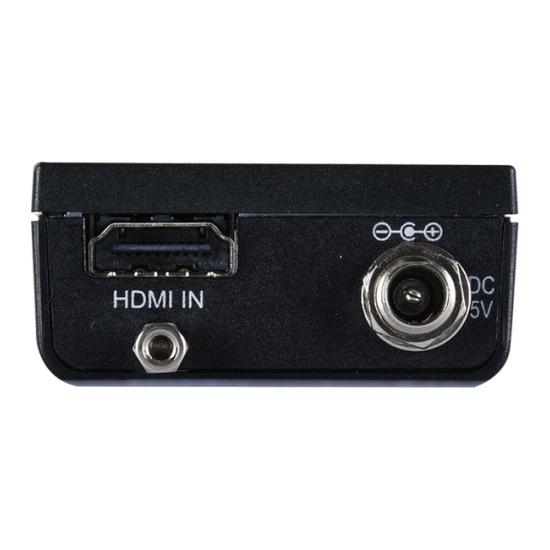

HDMI to HDMI Enhancer with EDID Management - Front View HDMI to HDMI Enhancer with EDID Management - Back View
Download Manual PDF Manual
